CO2 RF Laser Marking Machine

CO2 RF laser marking machine is a gas laser with CO2 as laser medium and wavelength near 10.6um. When high voltage is added to electrodes, discharging

through the cavity will excite CO2 molecules and produce 10.6um laser radiation. The laser can be directed to process non-metal materials.

1.The machine takes CO2 laser tube as the laser source. By 2D fast-speed scanning mirrors swinging as the scheduled angles under the controlling of the

computer, the laser focus on the surface of the work piece by F-θ lens to form images and realize marking and graph processing.

2.Using metal CO2 laser tube, with exquisite beam quality, stable power output, high marking precision, long working life time, and can work for 30,000 hours free

of maintenance, then can be recharged by filling CO2 gas, suitable for users requiring batch production and high marking precision. Once invested, whole-life benefited.

3. Using fast-speed scanning mirrors, it can be the graph in shortest time finish fine marking process.

4. Mini simple structure, abrasion and rusty against component, the system have the most stable performance and moving precision.

5. It can configure automatic configuration fixture, baiting production line.

6. It can mark data, serial number & bar code automatically.

7. Marking clearly and not easy to wear.

8. Use the computer control, user friendly interface, easy operation.

9.The extensive equipment performance, competitive of working continuously for 24-hour made it meet the demand of massive on-line and off-line

industrialized production.

Model	ROFER-CS-30/50/55/60
Laser Type	Co2 laser metal tube
Wavelength	10.6µm
Wattage	30W-100W
Frequency Range	1~100kHz
Operative Ambient Temperature Range	0-35℃
Cooling	Air Cooled
Input Power	Power Sensing 110-240VAC 50/60Hz
PC	Laptop
PC Connection	USB
Warranty	12 Month Comprehensive Unlimited Hours
Indicator	Double (Internal&External)
Laser Class	4
Start Marking	Footswitch and PC
Suggestive Transportation Mode	TNT/FedEX/DHL/Airplane

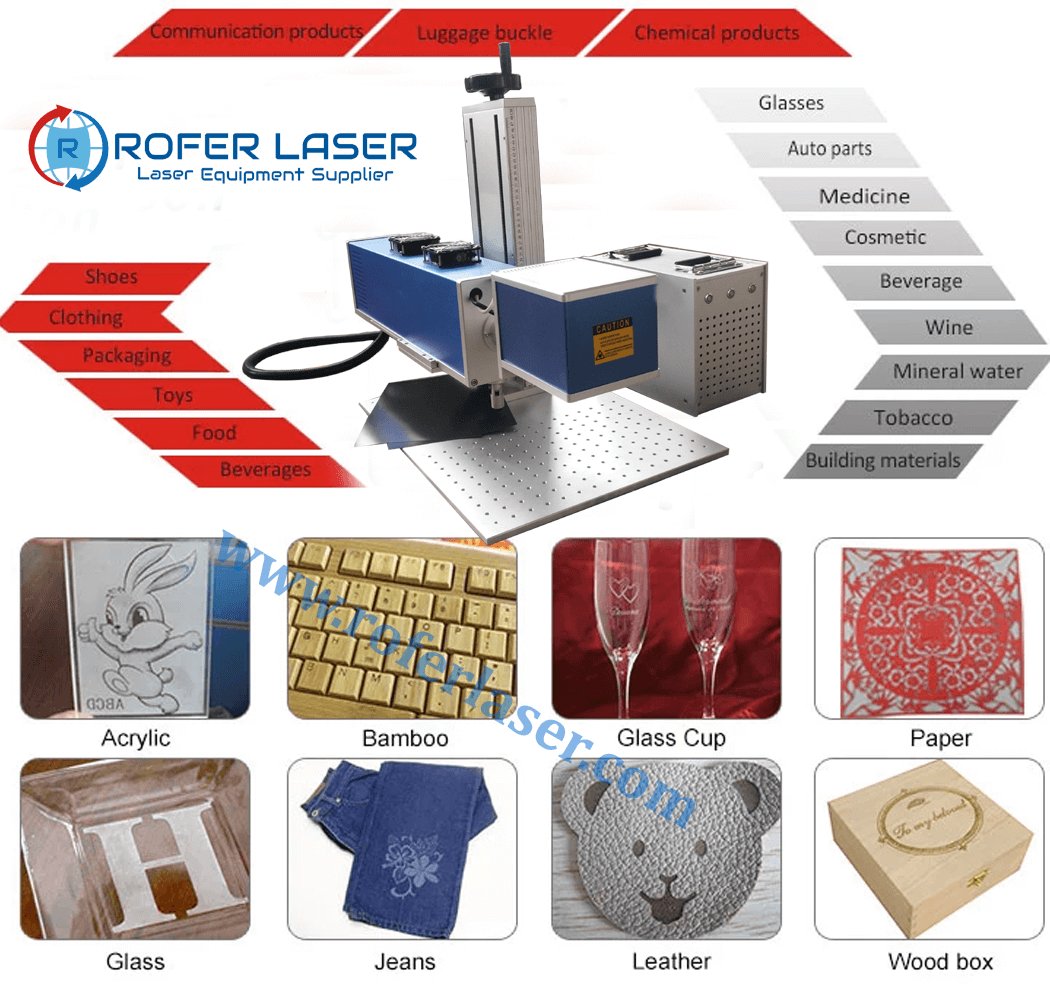

Applicable Materials:

CO2 RF laser marking machine is widely used in electronic components, instrument, garment, leather, suitcase and handbag, shoes, button, eye-glasses, medication,

food and beverage, cosmetics, packing, electronic equipment, etc.

Applicable Industries:

Lamp holder, Leather, food(eggs), packing carton box, beverage, cloth, electronic, meter, bottle , plastic, communication instruments, package and other industries,

it can be combined with streamline for online marking.
