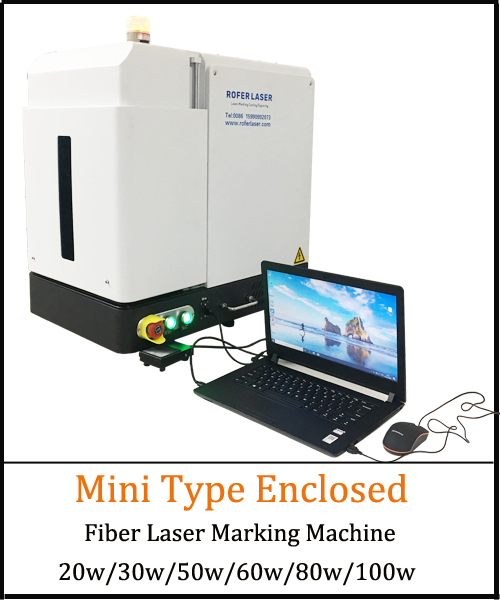

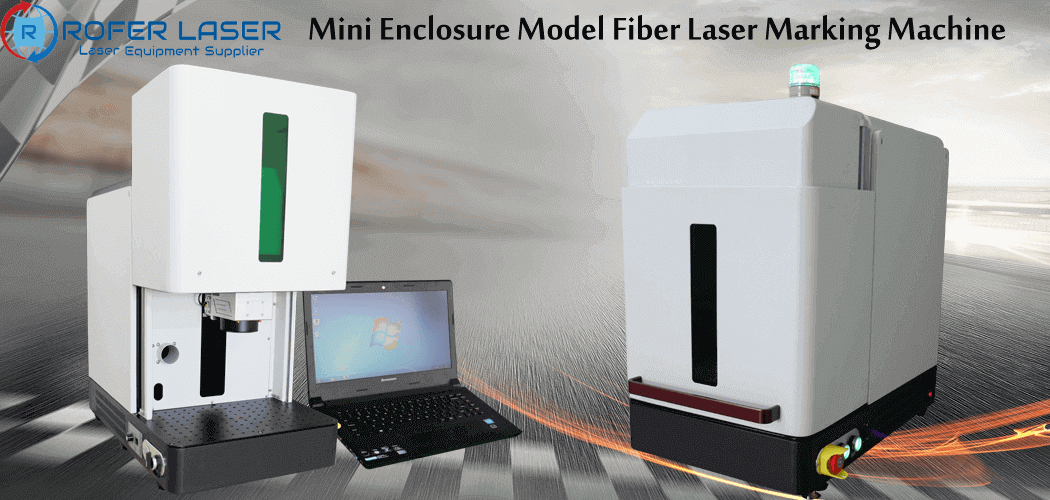

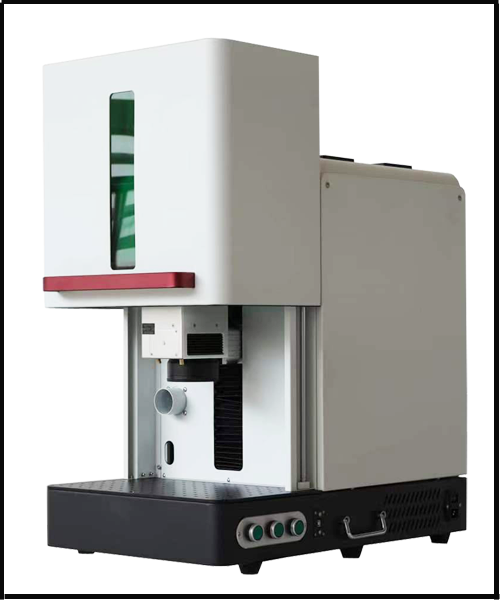

| Machine Model | Mini Enclosure Model |
| Laser Type | Fiber Laser |
| Laser Source Brand | China Raycus, China JPT, Germany IPG |
| Laser Power | 20w/30w/50w/60w/70w/100w |
| Laser Wavelength | 1062nm +/- 3nm |
| Marking area | 110*110mm/150*150mm |
| Marking line width | 0.01-0.1mm |
| Marking depth | 0.01-2mm(depending on material) |
| Working voltage | Power Sensing 110-240VAC 50/60Hz |
| Frequency Range | 20kHz~80kHz |
| Operative Ambient Temperature Range | 0-35℃ |
| Laser Class | 4 |
| Cooling way | Air Cooling |
| Warranty | 24 Month Comprehensive Unlimited Hours |
| Packing Size | 85*65*98cm |
| Packing Weight | 120KG |

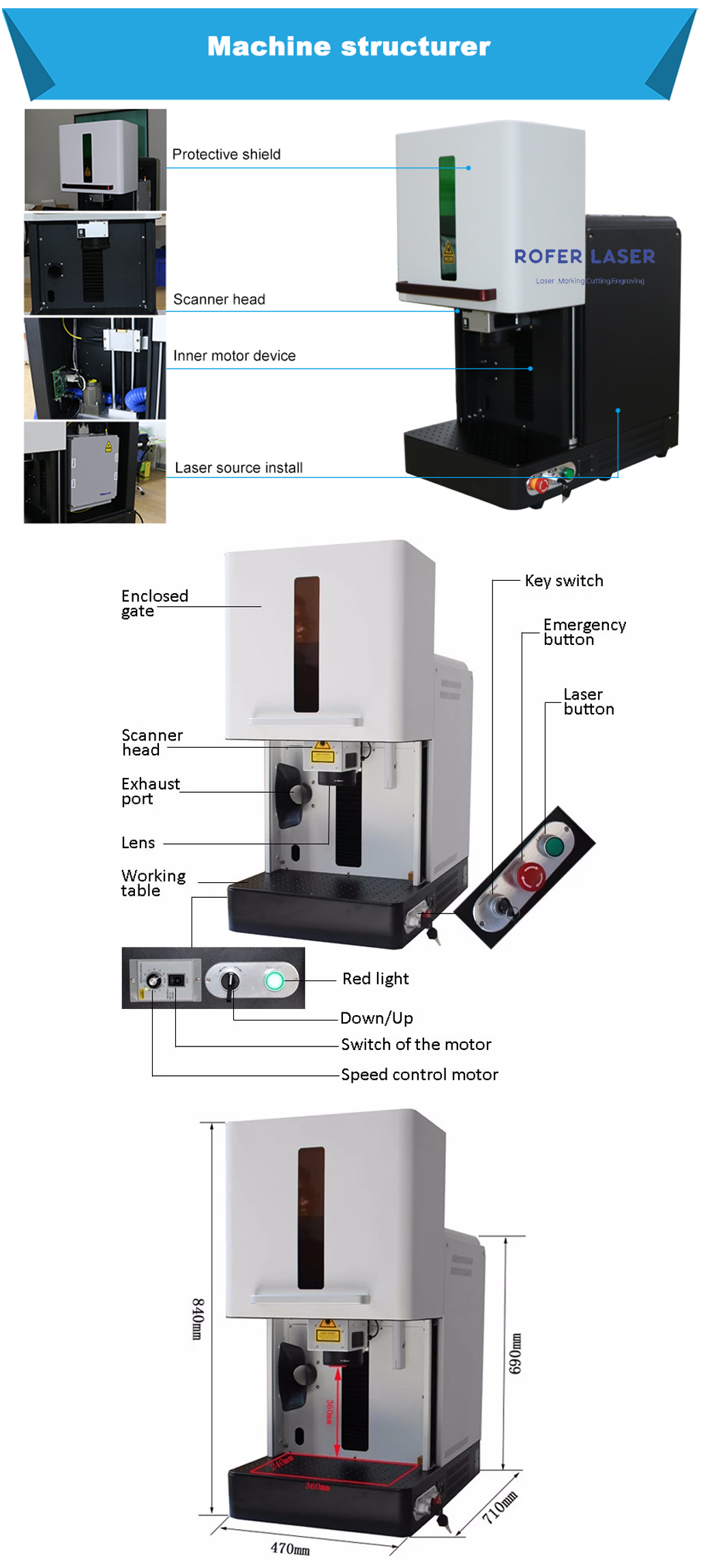

| 1. Full cover on whole machine, with alarm light |
| 2. Up-down slide manual door |
| 3. Motor controlled laser stand, up and down |
| 4. Double red dot Galvo head, much easier for marking focusing |
| 5. The Life span of a laser generator can reach up to approximately 100,000 hours |
| 6. Fast marking speed, high working efficiency, stable output power, high reliability |
| 7. Low running cost, the virtually maintenance-free laser system help minimize resource consumption |
| 8. Support CAD file(DXF), PLT/BMP/JPG/AI format |
Fiber laser marking machine is used in a variety of industries, such as printing 2D codes on automotive parts, logos on electronic components /electrical devices, lot numbers, text and many more applications. |
Application Materials: ● Iron, Copper, Ceramic, Magnesium, Aluminum ● Gold, Silver, Titanium, Platinum, Stainless Steel ● Titanium Alloy, Aluminum Alloy, High Hardness Alloy ● Oxide, Electroplating, coating, ABS, Epoxy Resin, Ink, Engineering,Plastic, etc. |
Application Industry: ● Integrated Circuit Chips marking, Computer Accessories marking ● Industrial Machinery marking, Watches marking ● Electronic and Communication products marking ● Aerospace devices marking, various Automotive parts marking ● Home Appliances marking, Hardware Tools marking, Molds engraving ● Wire and Cable marking, Food packaging marking, Jewelry marking and engraving ● Tobacco and Military industry design |
Jewelry Engraving Cutting Samples
Overseas after sale department, which can response to customers’ questions or problems within two working hours since we get your feedback. |
All finished machine are 100% strictly tested by our QC department and engineering department before shipping. |
Operation videos, detailed machine pictures,User manuals are free for customers. |
Offer OEM Customized Service, agents customized machines. |
