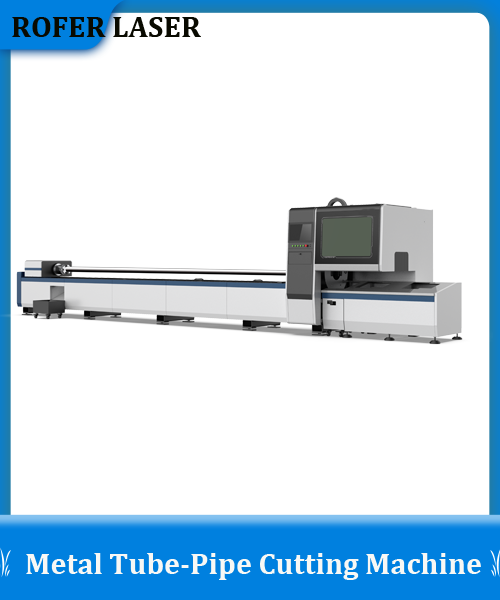

Metal Tube/Pipe Fiber Laser Cutting Machine

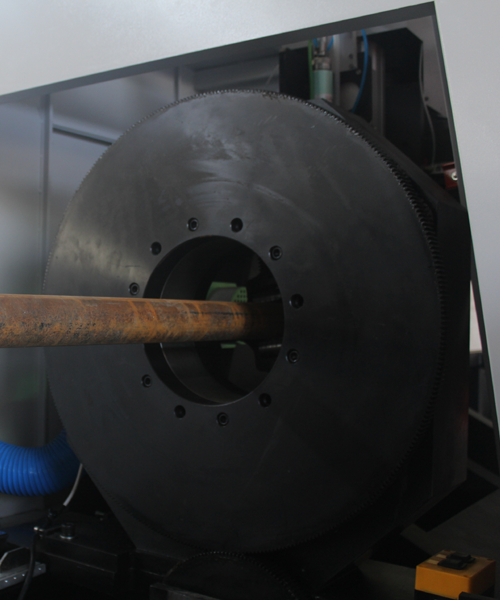

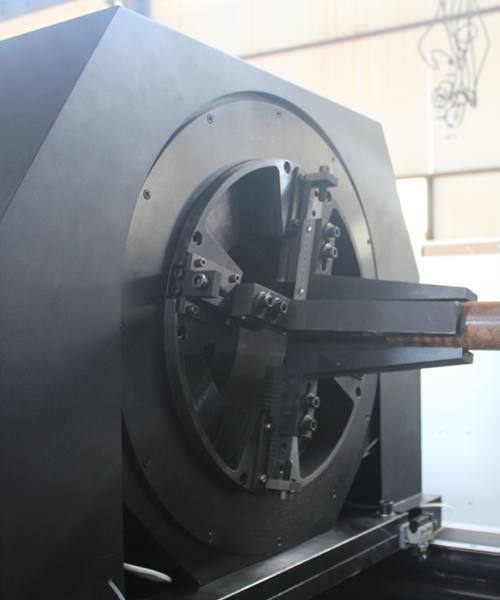

General-purpose pipe cutting machine is suitable for professional cutting of pipe materials. It mainly cuts round pipe, square pipe and ellipse pipe and can realize intersecting lines and cutting at any angle. Before and after the automatic chuck.
For more details, contact us freely!
Pipe laser cutting machine with 3000mm,6000mm or 8000mm.
It can cut round,square,irregularity,rectangle metal tube
The machine can support minimum metal tube outer diameter 20x20mm, maximum outer diameter 200x200m

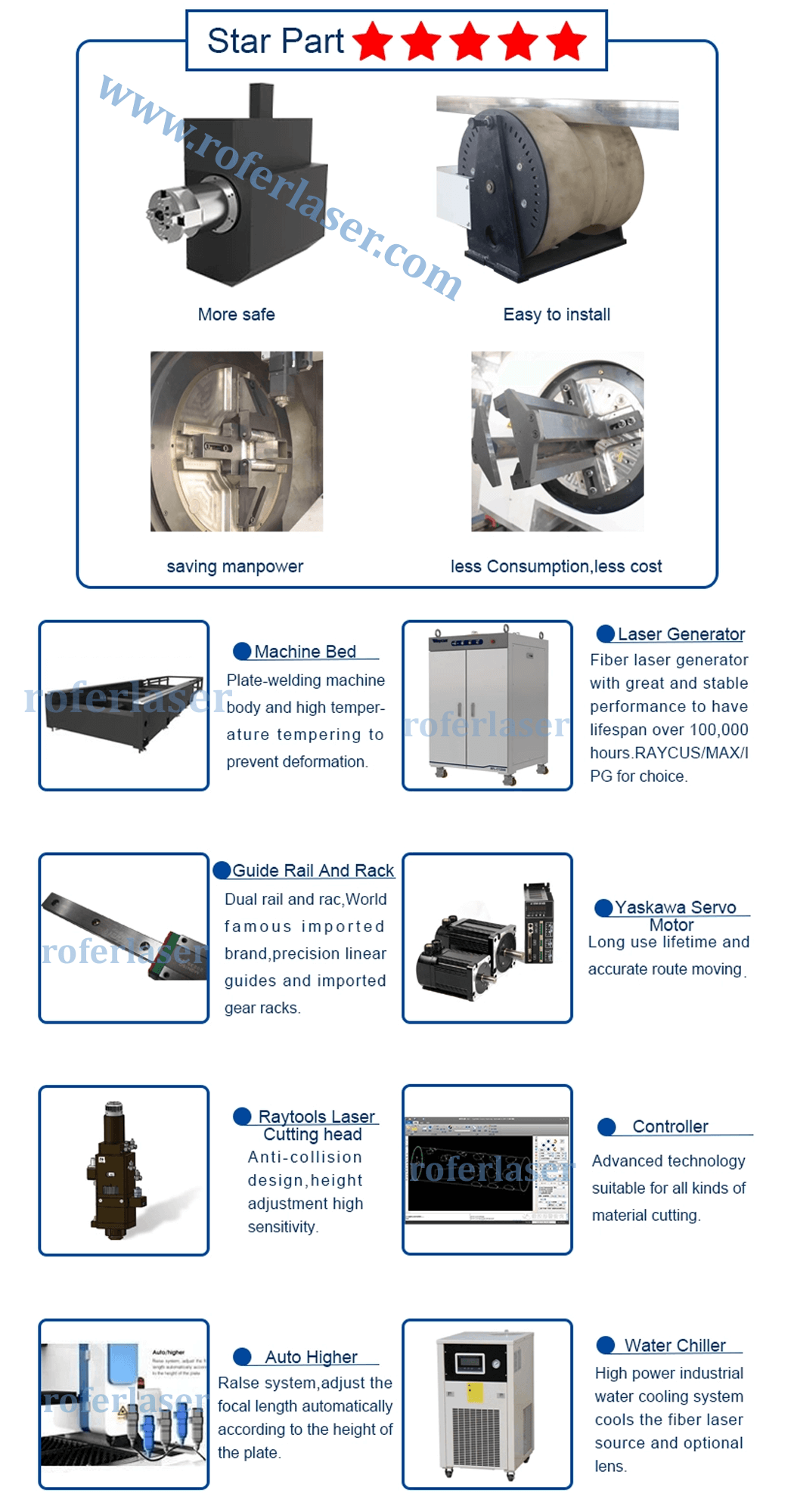

The fiber laser cutting machine laser source support IPG, Raycus and nLIGH, cutting head support Precitec and RayTools
The sofware used Chinese best brand which is Cypcut and CypTube
Laser power from 500 watts to 8000 watts
Servo Motor brands: YASKAWA from Japan, Beckoff from Germany
Rack and pinion: Atlanta from Germany, YYC from Taiwan
Linear guide: Bosch from Germany, HIWIN from Taiwan
Reducer: Neugart from Germany, Shimpo from Japan
Water chiller: HANLI Brand
Model | Rofer-C-6020 |
Max.outside diameter of round tubes(mm) | 20-210(Customized to 250) |
Pipe thickness | Depends on the power |
Cutting speed | Cutting speed: Max 0.8s/cut(Depending on material thickness) |
“y” axis single feeding length | 1200mm |
“z” axis adjustment range | 65mm |
“w” axis adjustment range | 360° |
Machine repeat positioning accuracy | ±0.05mm/1000mm |
Machine positioning accuracy | ±0.1mm |
Machine idle speed | 120m/min |
Maximum acceleration | 1.0G |
Electricity demand | 380V 50Hz(customizable) |
Cutting accuracy | ±0.1mm |
Machine size | 9340*1560*1615MM |
Machine weight | 8T |
Power | 500-8000w(Optional) |
Accuracy | ±0.1mm |
Max . raw material length (mm) | ≤6200 |
Max. finished part length (mm) | 1200 |
Pipe remain length (mm) | 180 |
Multi-funtional cutting | Mitre cut ,rectangular ,slot, square, circular ,cold mouth ,special profiles |
Application Materials:
Fiber Laser Cutting Equipment is suitable for metal cutting like Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring steel Sheet,
Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet,
Metal Plate, Tubes and Pipes, etc
Application Industries:
Fiber Laser Cutting Machines are widely used in manufacture Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters,
Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal crafts, metal art ware, elevator panel cutting,
hardware, auto parts, Glasses Frame, Electronic Parts, Nameplates, etc.

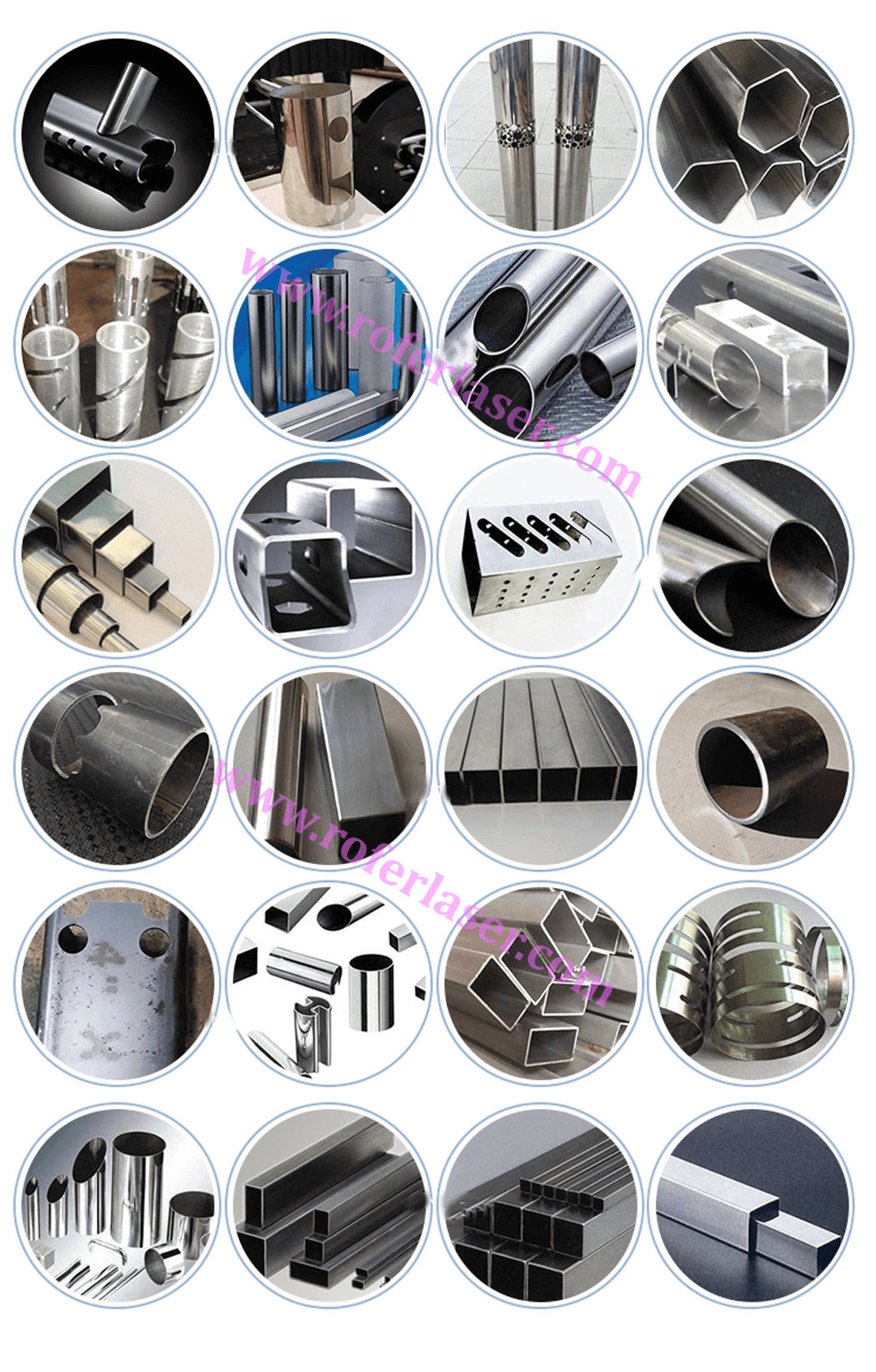

Metal tube cutting samples:
