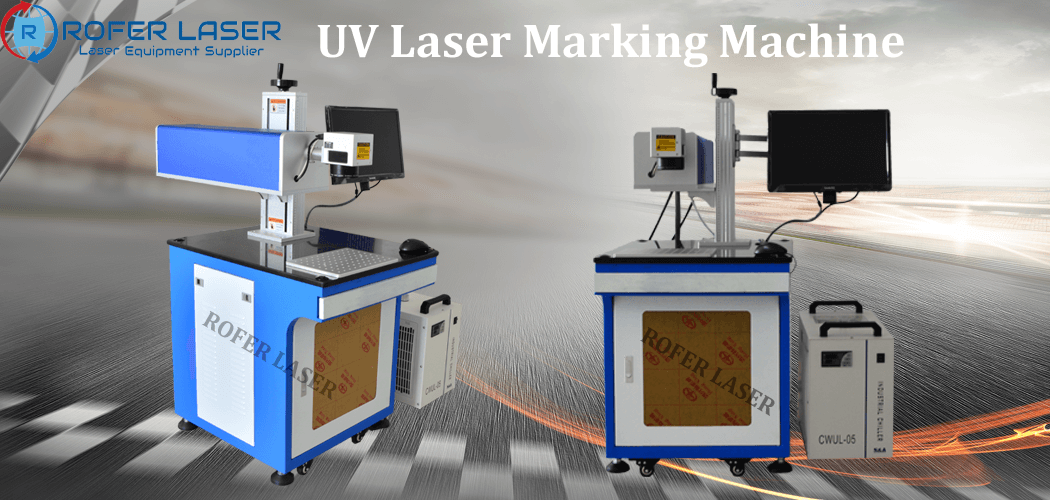

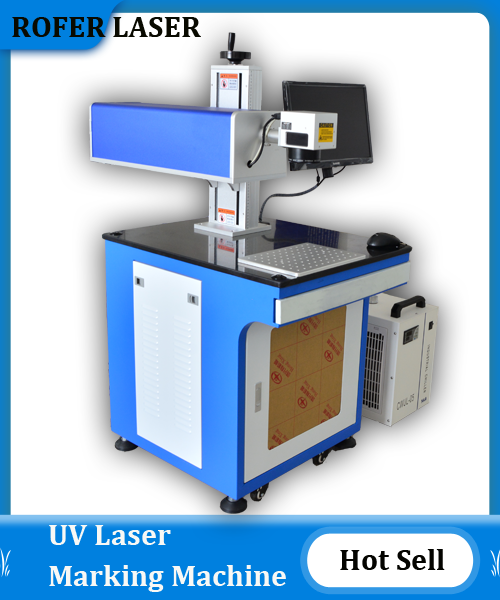

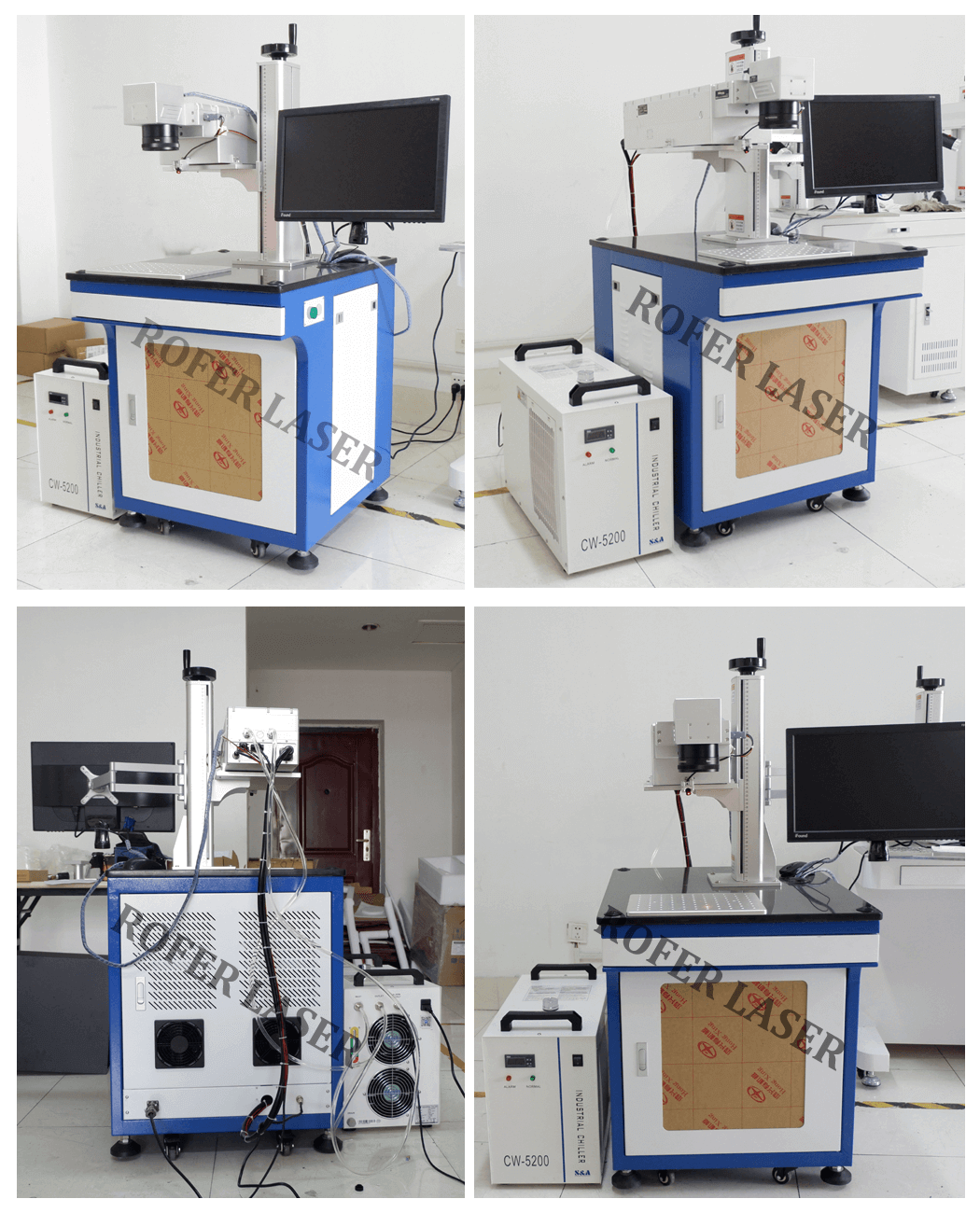

UV Laser Marking Machine

UV laser marking machine with its 355nm wavelength widely used for marking a wide range of materials, perfect for “cold marking” applications where heat zones

are not allowed. UV laser marking machine can mark plastics and silicon materials without the need of additives and can also mark glass with drastically reduced

risk of microfracture. The UV laser marking machine’s excellent beam quality also can be utilized in micro marking applications such as electronics, circuit boards

and microchips in addition to solar panels and precise medical marking applications.

(1)Unique Intracavity frequency doubling technology.

Adopting doubling technique of intravenous frequency has greatly improve the stability of laser. Design on laser cavity adopts a series of optimization method,

so as to ensure the beam quality as the fundamental mode.

(2) 355nm wavelength for Colder Marking.

The machine takes 355nm pumped purple light laser device as the light source. Narrower pulse width and smaller heat affection contribute to generate peak power.

The higher the peak power is, the wider the adapting range of materials is. This implement perfect printing in some relatively hard material.

(3) Stable output of power and pulse width

 Higher pulse stability, namely better pulse consistency of laser produces the same carving effect, so it’s very suitable for precision marking. Higher pulse repetition

frequency meets the need of quick marking and high production efficiency.

(4) Excellent beam quality, M²<1.2

(5)High beam pointing stability

(6)Wide repetition rate range:20-200kHz

(7)Controllable with RS232 interface
