1.High rigidity heavy chassis, reducing the vibration generated during the high-speed cutting process.
2.Gantry double-drive structure,with imported Germany rack & gear transmission system, which improves the production efficiency.
3 High-performance cast aluminium guide rail, after infinite aalysis ,which accelerates the cicular arc cutting speed.
4.Open worktable, easy operation and small space occupation.
5.High precision, fast speed, narrow slit, minimum heat affected zone, smooth cut surface and no burr.
6. The laser cutting head does not come into contact with the surface of the material and does not scratch the workpiece.
7. The slit is the narrowest, the heat affected zone is the smallest, the local deformation of the workpiece is very small, and there is no mechanical deformation.
8.It has good processing flexibility, can process any pattern, and can cut pipes and other profiles.
9. Non-deformable cutting can be performed on materials of any hardness such as steel plates, stainless steel, aluminum alloy plates, and hard alloys.
1 | Machine Name | 500W 750W 1000W 1500W 2200W 3300W 4000W 6000W 8000W High Power Metal Plate + Metal tube/pipe Fiber Laser cutting machine LXF3015GR |
2 | Model | ROFER-C-1530/1325/2040/2060 |
3 | Laser machine cutting area | 3000x1500mm/1300*2500mm (Other size can be customized,such as 4500×1500/6000×1500/6000x2000mm) |
4 | Tube Cutting Range | Tube diameter range:20-200mm Tube length:3000mm/6000mm (Other size can be customized,detailed confirmed with sales) |
5 | Fiber Laser Power | 500w/750w/1000/1500/2200/3300/4000/ 6000/8000 |
6 | Laser wave length | 1064nm |
7 | Transmission system | Gear + rails (we have standard brand,we can also produce as your requirements) |
8 | X.Y axis location accuracy | ±0.01mm |
9 | X.Y axis repeat location accuracy | ±0.01mm |
10 | X.Y axis max moving speed | 30m/min |
11 | Max cutting speed | 1–30m/min(it will according to metal material and laser power and machine configuration) |
12 | Cutting thickness | Detailed in the following cutting thickness |
13 | Application Material | Metal sheet Iron/CS/SS/Aluminum/Copper and all kinds metal |
14 | Advantages | >Excellent beam quality |
15 | Gross weight | 10000KG(About) |
16 | Net weight | 9500KG(About) |
17 | Machine size | Rotary size:8000*1600*1150mm Machine size(without rotary): 5200*3000*2600mm Detailed machine size will be according to detailed configuration.this size for your reference. |
18 | Transport | 40 container + 20 shell frame |
Application Materials:
Fiber Laser Cutting Equipment is suitable for metal cutting like Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring steel Sheet,
Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet,
Metal Plate, Tubes and Pipes, etc
Application Industries:
Fiber Laser Cutting Machines are widely used in manufacture Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters,
Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal crafts, metal art ware, elevator panel cutting,
hardware, auto parts, Glasses Frame, Electronic Parts, Nameplates, etc.

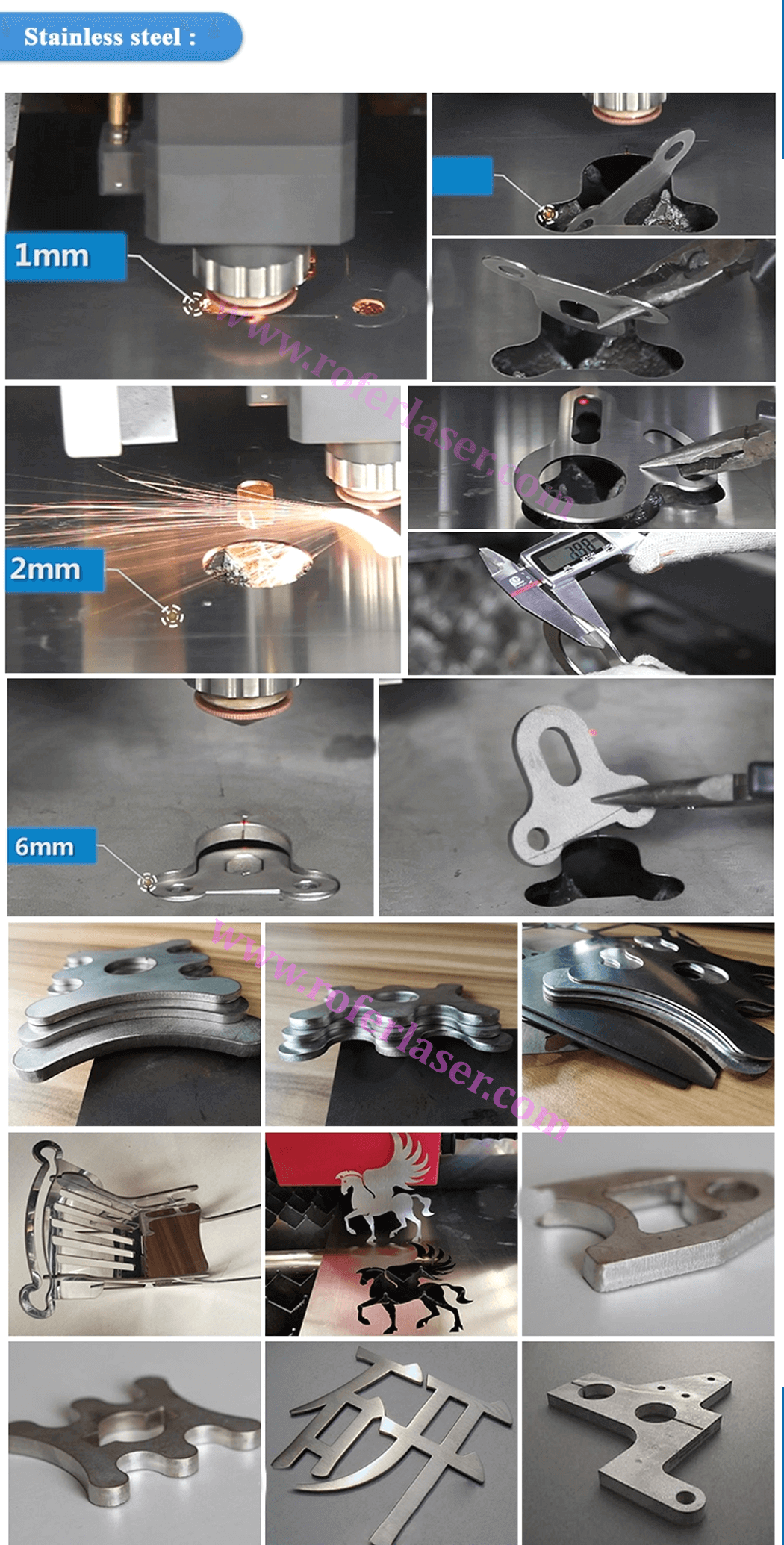

Metal tube cutting samples:
