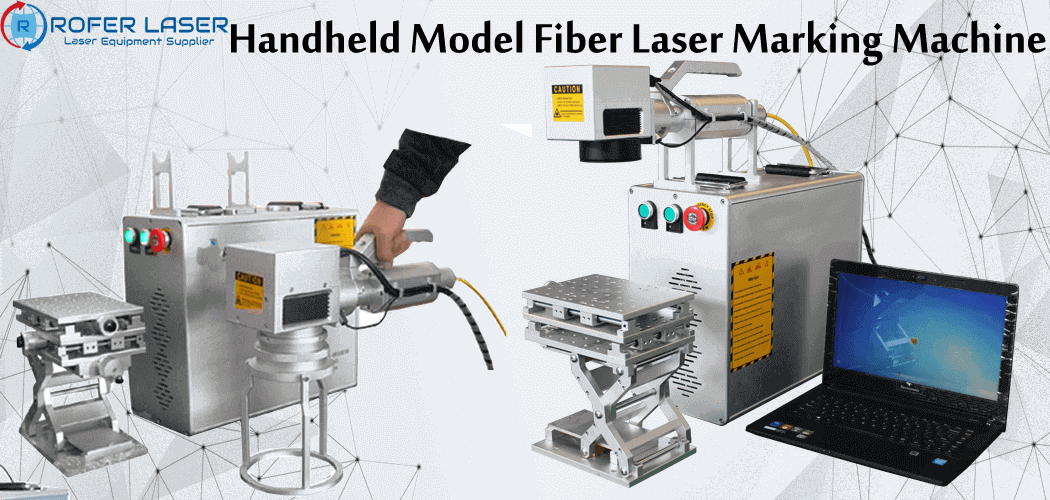

Handheld Model Fiber Laser Marking Machine

Machine Model

Handheld Model

Laser Type

Fiber Laser

Laser Source Brand

China Raycus, China JPT, Germany IPG

Laser Power

20w/30w/50w/60w

Laser Wavelength

1062nm +/- 3nm

Marking area

110*110mm

Marking line width

0.01-0.1mm

Marking depth

0.01-2mm(depending on material)

Working voltage

Power Sensing 110-240VAC 50/60Hz

Frequency Range

20kHz~80kHz

Operative Ambient Temperature Range

0-35℃

Laser Class

4

Cooling way

Air Cooling

Warranty

24 Month Comprehensive Unlimited Hours

Packing Size

85*40*84cm

Packing Weight

60KG

1.  Handheld type marking machine, all-in-one design ensure high reliability of the laser, without any optics to adjust collaborating.

2. Removable integrated system design makes it more convenient for customers to use, provides the ideal solution for a variety of industrial application.

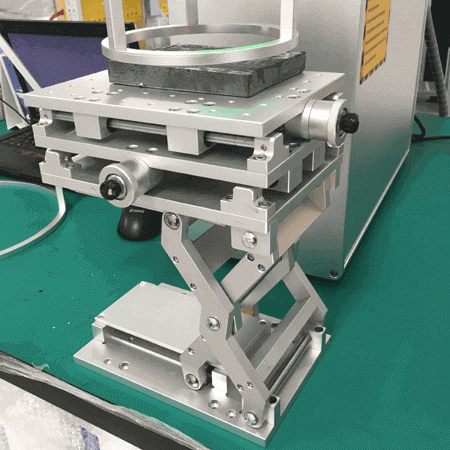

3. With small 3D working table, for up-down/right-left/forward-backward adjust.

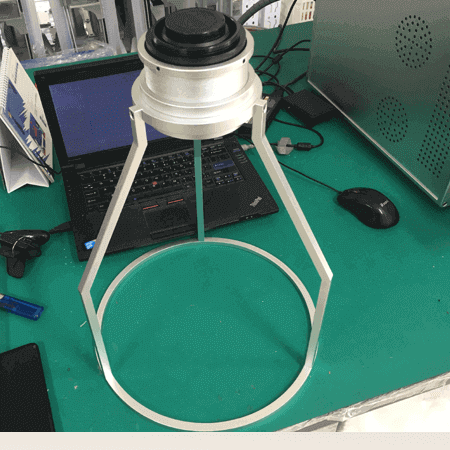

4. With  Focus Length Column, for marking focus distance setting.

5.The Life span of a laser generator can reach up to approximately 100,000 hours

6. Fast marking speed, high working efficiency, stable output power, high reliability

7. Low running cost, the virtually maintenance-free laser system help minimize resource consumption

8. Support CAD file(DXF),  PLT/BMP/JPG/AI format

Fiber laser marking machine is used in a variety of industries, such as printing 2D codes on automotive parts,

logos on electronic components /electrical devices, lot numbers, text  and many more applications.

Application Materials:

● Iron, Copper, Ceramic, Magnesium, Aluminum

● Gold, Silver, Titanium, Platinum, Stainless Steel

● Titanium Alloy, Aluminum Alloy, High Hardness Alloy

● Oxide, Electroplating, coating, ABS, Epoxy Resin, Ink, Engineering,Plastic, etc.

Application Industry:

● Integrated Circuit Chips marking, Computer Accessories marking

● Industrial Machinery marking, Watches marking

● Electronic and Communication products marking

● Aerospace devices marking, various Automotive parts marking

● Home Appliances marking, Hardware Tools marking, Molds engraving

● Wire and Cable marking, Food packaging marking, Jewelry marking and engraving

● Tobacco and Military industry design

 Overseas after sale department, which can response to customers’ questions or problems within  two working hours since we get your feedback.

 All finished machine are 100% strictly tested by our QC department and engineering department before shipping.

Operation videos, detailed machine pictures,User manuals are free for customers.

Offer OEM Customized Service, agents customized machines.
