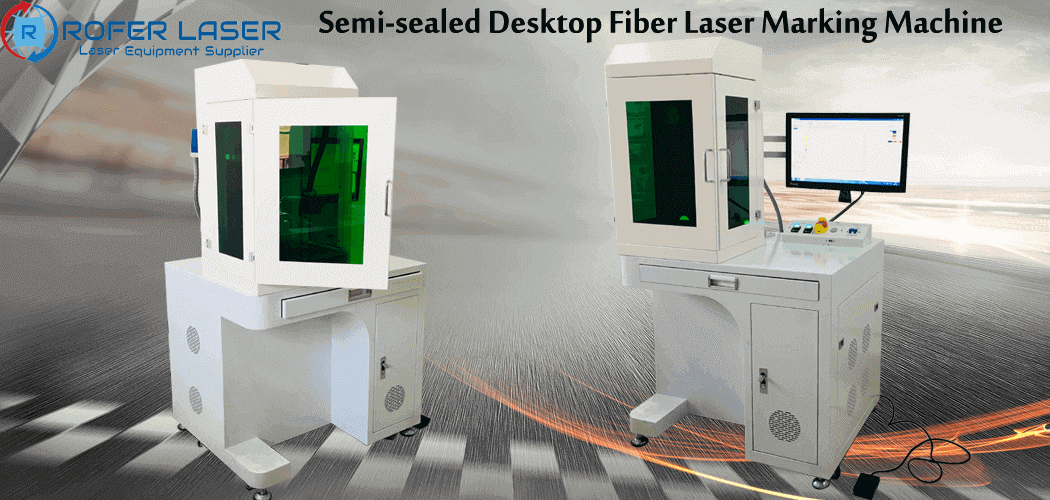

Semi-sealed Desktop Fiber Laser Marking Machine

Semi-sealed cover on the marking head.

With wheels for easy moving, high and big working table can let workers seat beside it while operating. Convenient for big and heavy products.

For more information, please contact us!

Machine Model	Semi-sealed Desktop Model
Laser Type	Fiber Laser
Laser Source Brand	China Raycus, China JPT, Germany IPG
Laser Power	20w/30w/50w/60w/70w/100w
Laser Wavelength	1062nm +/- 3nm
Marking area	110110mm/175175mm/200200mm/300300mm
Marking line width	0.01-0.1mm
Marking depth	0.01-2mm(depending on material)
Working voltage	Power Sensing 110-240VAC 50/60Hz
Frequency Range	20kHz~80kHz
Operative Ambient Temperature Range	0-35℃
Laser Class	4
Cooling way	Air Cooling
Warranty	24 Month Comprehensive Unlimited Hours
Packing Size	9584158cm
Packing Weight	160KG

1. Semi-sealed cover on the marking head.

2. With wheels for easy moving, high and big working table can let workers seat beside it while operating. Convenient for big and heavy products.

3.The Life span of a laser generator can reach up to approximately 100,000 hours

4. Fast marking speed, high working efficiency, stable output power, high reliability

5. Low running cost, the virtually maintenance-free laser system help minimize resource consumption

6. Support CAD file(DXF), PLT/BMP/JPG/AI format

Fiber laser marking machine is used in a variety of industries, such as printing 2D codes on automotive parts,

logos on electronic components /electrical devices, lot numbers, text and many more applications.

Application Materials:

● Iron, Copper, Ceramic, Magnesium, Aluminum

● Gold, Silver, Titanium, Platinum, Stainless Steel

● Titanium Alloy, Aluminum Alloy, High Hardness Alloy

● Oxide, Electroplating, coating, ABS, Epoxy Resin, Ink, Engineering,Plastic, etc.

Application Industry:

● Integrated Circuit Chips marking, Computer Accessories marking

● Industrial Machinery marking, Watches marking

● Electronic and Communication products marking

● Aerospace devices marking, various Automotive parts marking

● Home Appliances marking, Hardware Tools marking, Molds engraving

● Wire and Cable marking, Food packaging marking, Jewelry marking and engraving

● Tobacco and Military industry design

Overseas after sale department, which can response to customers’ questions or problems within two working hours since we get your feedback.

All finished machine are 100% strictly tested by our QC department and engineering department before shipping.

Operation videos, detailed machine pictures,User manuals are free for customers.

Offer OEM Customized Service, agents customized machines.
