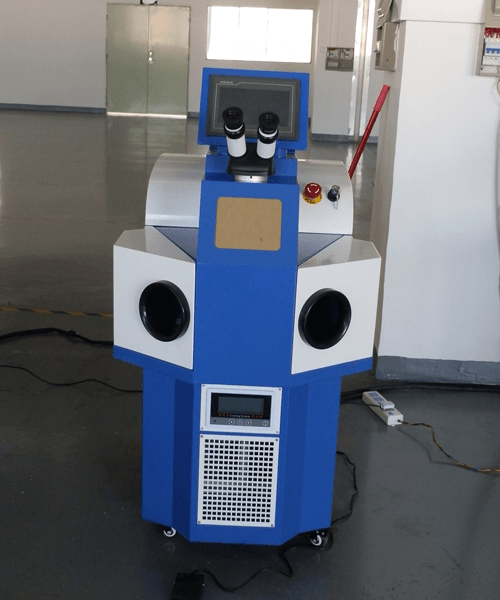

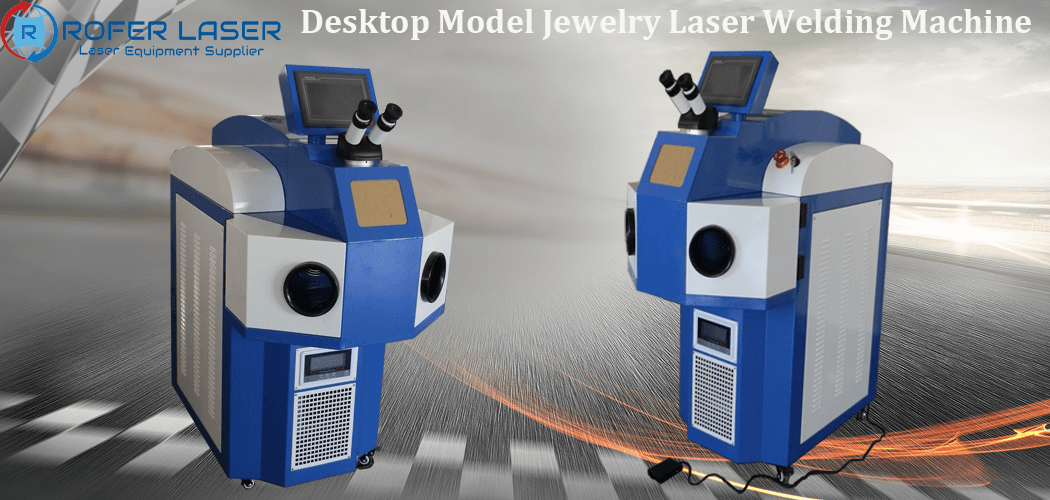

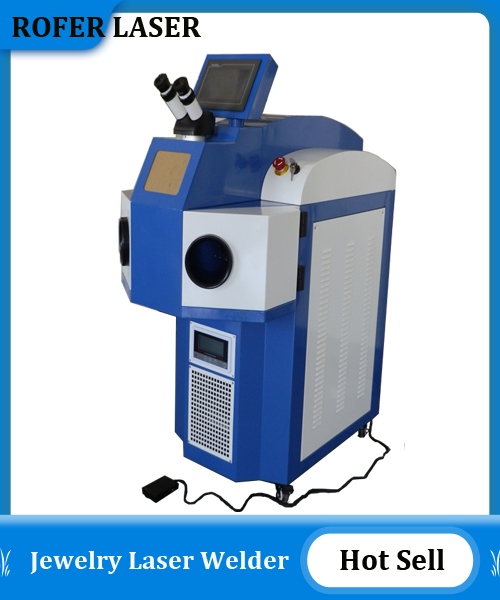

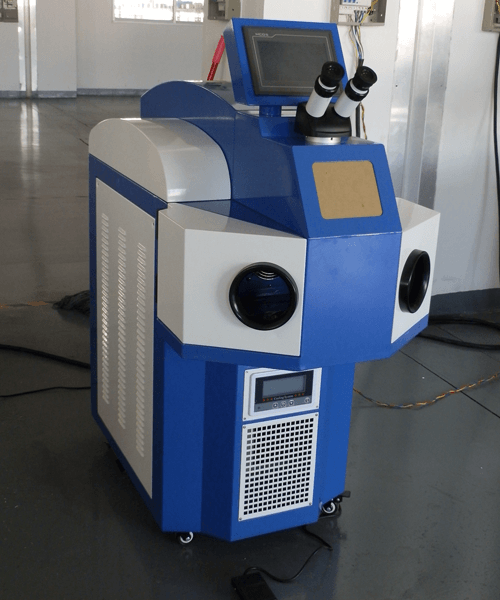

Desktop Model Jewelry Laser Welding Machine
Jewelry spot welding machine with External chiller is specially developed for laser welder of jewelry by ROFER LASER and mainly used in perforating and spot welder of gold and silver jewelry. It is of touch screen type, adopting new style power source, elaborating operation, and optimizing the optical path, with high photoelectric conversion efficiency, high stability, small size, high configuration and other characteristics.
For more information, please contact us freely!
* Build-in water chiller, convenient.
* Precision weld without surface touch.
* Small heat-affected zone, expertise and beautiful welding spot, without excessive handling after welding.
* Using advanced automatic light shielding system, eliminating the light stimulating to eyes.

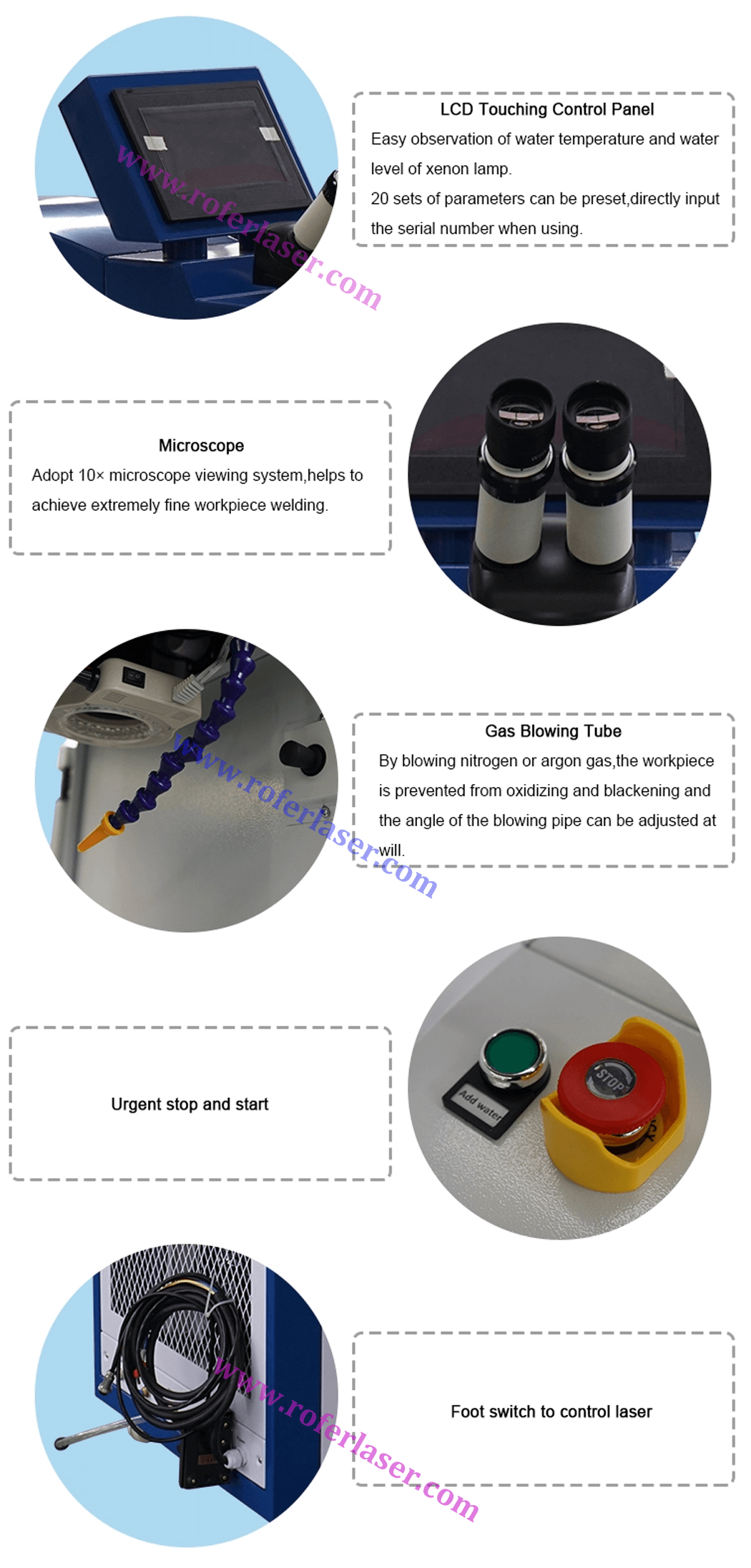

* 10X microscope magnification, cross cursor indicating, the shielding gas output in synchronization with the laser, assure good appearance of solder joint.
Product Name | Desktop Jewelry Laser Welding Machine | |
Model No. | ROFER-W-150 | ROFER-W-200 |
Laser Source | Nd:YAG | |
Laser Wavelength | 1064nm | |
Rated Power | 150W | 200W |
Laser Energy | 80J | 100J |
Pulse Width | ≤20ms | |
Pulse Frequency | ≤50Hz | |
Beam Diameter | 0.1-3.0mm | |
Power Supply | 220V±10% /50Hz and 60Hz compatible | |
Observing System | microscope 10X | |
Chamber Illumination | LED circle lamps | |
Parameters Memorization | 10 groups | |
Protection Alert | flow alert | |
Language Display | Chinese/English | |
Shield Gas Supply | One line(Argon) | |

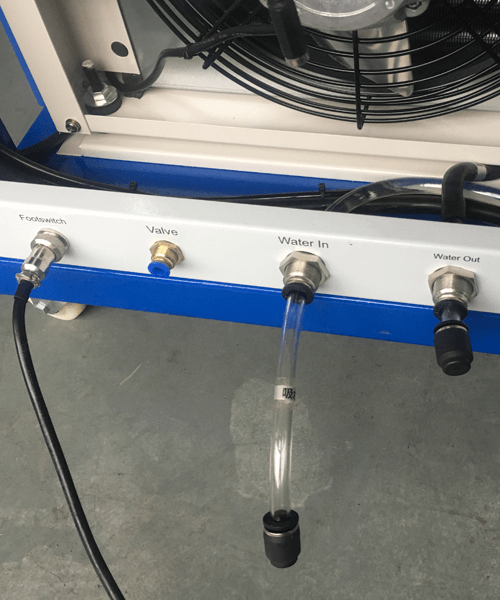

Cooling System | water chiller | |
Power Consumption | 6.5KW | 7.5KW |
Welding Chamber Dimensions | 340mm*540mm*180mm(L*W*H) | |
Machine Dimensions | 115*70*140CM (L*W*H) | |
Running Environment | 5℃-30℃, 5%-75% humidity | |
Net Weight | 150kg(welder)+65kg(chiller) | |
Applicable materials:
Gold, silver, platinum, stainless steel, titanium, and other metals and their alloys. Widely used in gold and silver jewelry, rings, pendants, bracelets, necklaces, holes,
spot welding brazing, repair seams and the welding of claw parts of the mosaic parts, etc., can also be applied to artificial teeth sand and small precision parts
(such as: Inheritance Circuit lead, clock spring, kinescope , electron gun assembly, etc.)
Overseas after sale department, which can response to customers’ questions or problems within two working hours since we get your feedback. |
All finished machine are 100% strictly tested by our QC department and engineering department before shipping. |
Operation videos, detailed machine pictures,User manuals are free for customers. |
Offer OEM Customized Service, agents customized machines. |
